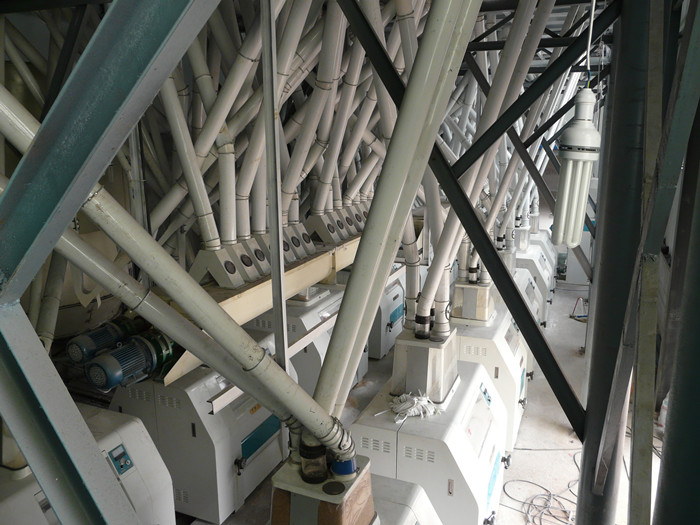

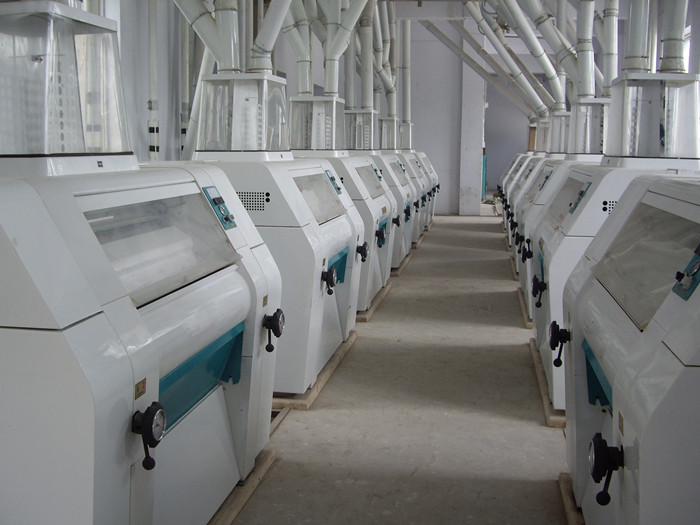

200T Corn Flour Processing Plant adopts dry method and mainly consists of corn cleaning section, corn milling section and corn packaging section. The corn dry milling process is a less versatile, less capital intensive process. In the corn milling process, the corn milling machine depends on one pair of opposite differential rotation to peel materials, extract the endosperm and mill corn kernels into fine ground corn meal.
Core equipments of corn milling plant: vibrating sieve, classifying destoner machine, air blower, air suction duct, degerminator, germ extraction machine, corn peeling machine, corn polishing machine, flat sieve.







200T Corn Flour Processing Plant Features:
Corn cleaning ensures high purity maize germ, grits and flour. New type maize cleaning machine and destoner ensure maize the best processing condition and the highest purity for further maize milling process.
Dry milling process and high maize product yield. The completely dry method maize degermination, peeling, polishing and milling process ensures high yield of corn flour (75-80%), corn husks of 20-25%.
Corn mill plant realizes easy operation and maintenance.
Corn mill reduces equipment input in grain dampening and end products drying and makes the maize processing more sanitary.



200T Corn Flour Processing Plant Working Process:
1. The plant needs to remove the impurities that adhere to the corn kernels surface, then polishes the corn kernels and makes them look more bright.
2. The plant cleans the corn by once screening, once stone removing and once magnetic separation section to remove the big, medium and small impurities and the magnetic material from the corn.
3. Then the material goes into fine flour milling section, screening section and purification section.
4. You can choose manual packaging or electronic packaging according to your actual demand.




Explain for designing:
A. Capacity: Processes 200 tons of Maize one day(24 hours).
B. The quality of the raw grain: Africa Maize(soft or hard)
C. Working system: 24 hours one day.
D. The quality index of the corn (Remark: according to the customer’s standard to adjust designing ):

Item	Spec. and Characteristic	Hard maize	Soft maize
	Moisture content（%）	≤14.5	≤14.0
	Hard maize（minimum）（%）	60	45



Quality (minimum	Density（kg/l）	≥660	≥660
	Weight of thousand maize (g)	295	280
	Ash (%)	1.75	1.7
Impurity (maximum)	Inorganic impurities(%)	0.4	0.5
	Other grains (%）	0.3	0.5
	Incomplete rate（%）	4.0	6.0

Processing Capacity	Power	Power Consumption for Tons of Material	Yield	Workshop Size
	KW	KW/HOUR	T/24 H	L×W×H/M
20T	72	58-60	20T	20×5×5（line structure）
				16×5×6（steel structure）
30T	108	58-60	30T	24×5×6（line structure）
				30×5×5（steel structure）
50T	172	56-58	50T	35×5×7（steel structure）
100T	346	56-58	100T	40×7×8（steel structure）
