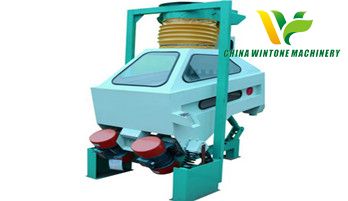

MAIZE CLEANING MACHINE refers to TQSF series specific maize destoner machine here. It is a newly designed highly efficient equipment specially for the cleaning of corn (maize). The equipment adopts the most advanced “Reverse Cleaning Theory”, and is employed for the efficient removal of high-density matter and low-density impurities from the grain stream which provides additional protection to downstream process, and wear is reduced significantly. TQSF maize cleaning machine is a wonderful choice for grain intensive processing plants both in china and overseas.

Maize cleaning machine wearing parts:
No.       term                                           specification           quantity
1         supporting spring                         Φ8-Φ9                     5
2         first sieve                                                                         1
3         second sieve                                                                  1
4         third sieve                                                                        1
5         destoning sieve                                                              1
6         bearing of materials finisher      3510                         2
7         triangle strap                                 A-1000                      2
8         sieve cylinder of corn machine   1.5×1.5                 1 set
9         cleaning rubber ball                      Φ25                       64 pieces

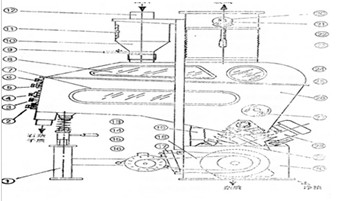

Maize cleaning machine spare parts picture:

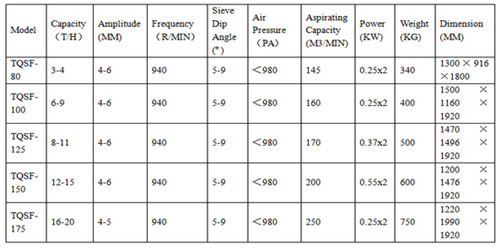

Maize cleaning machine technical parameter:

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
