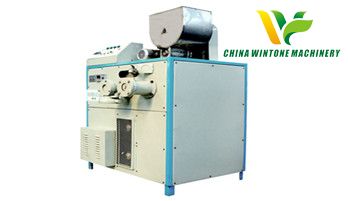

Corn noodles machine usage:
This machine is designed to make grain noodles, such as corn noodles, buckwheat noodles and Korea cold noodles. The process does not need any additives. It is the core equipment in producing coarse grain health food.

Working principle:

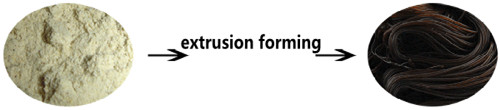

Win Tone YMT-200 corn noodle machine can process 200kg of coarse grain noodles per hour. The raw material is grain flour which has been peeled, such as peeled corn flour and buckwheat flour. First, we add water to the raw material for blending in the flour bucket blender. Then the material enters through the feeding port. When the temperature rises to 80°-120°, the material becomes ripening, then the raw material enters into the second propeller working cylinder for continuous squeezing and is extruded into grain noodles out of the forming mould. Then the grain noodles are cooled for forming by cooling blower. After the above process, the noodles just need the follow-up processing and then become the popular grain noodles in the market.

Corn noodles machine features:
No additives in the process, healthy food.
High tenacity and elasticity. Crystal clear color, pure and natural taste, and rich nutrition.

Technical parameter:

Model	Yield （kg）	Power (kw)	Pattern Size（mm）		Weight （kg）	Outline Size (mm)
			Circular Hole Pattern	Square Hole Pattern
YMT-200	200	18.5+0.75	Φ1.2 Φ1.5 Φ1.8	3x0.5 5x0.5 8x0.5	1000	1180x1060x1850

Accessories: triangular belt, sieve plate, forming mould.
End products:
